Golden Choice GC-Q28 Máquina de acolchado de una sola aguja computarizada y continua
Uses：
Quilt matress, coverlet, bedcover, sponge, leather and so on.
Main Specifications：
| Quilting width： | ≤2400mm | Needle model： | 130/21 |
| Quilting length： | ≤2600mm | Rotating speed of needle： | 0-2500RPM |
| Quilting thickness： | ≤80mm | Total power： | 8.8Kw |
| Gross weight： | 3500kg | Power： | 3X 380V 50Hz |
| Stitch length： | 2-8mm | Overall dimension： | 8600mm X 3740mm X 1900mm |
FEATURES：
1.Adopt advanced outsize lock stitch sewing, auto thread-breaking checking and quilting. The presser foot can be adjusted to different thickness.
2.Equipped with high-capacity computer that can deal with various kinds of complicated patterns. Can run by continuous or interval way according to fabric and processing requirement.
3.3600 jump quilting, pattern effect display, processing locus display, thread auto-cutting, needle auto-lifting, auto-stop when thread-breakage, etc.

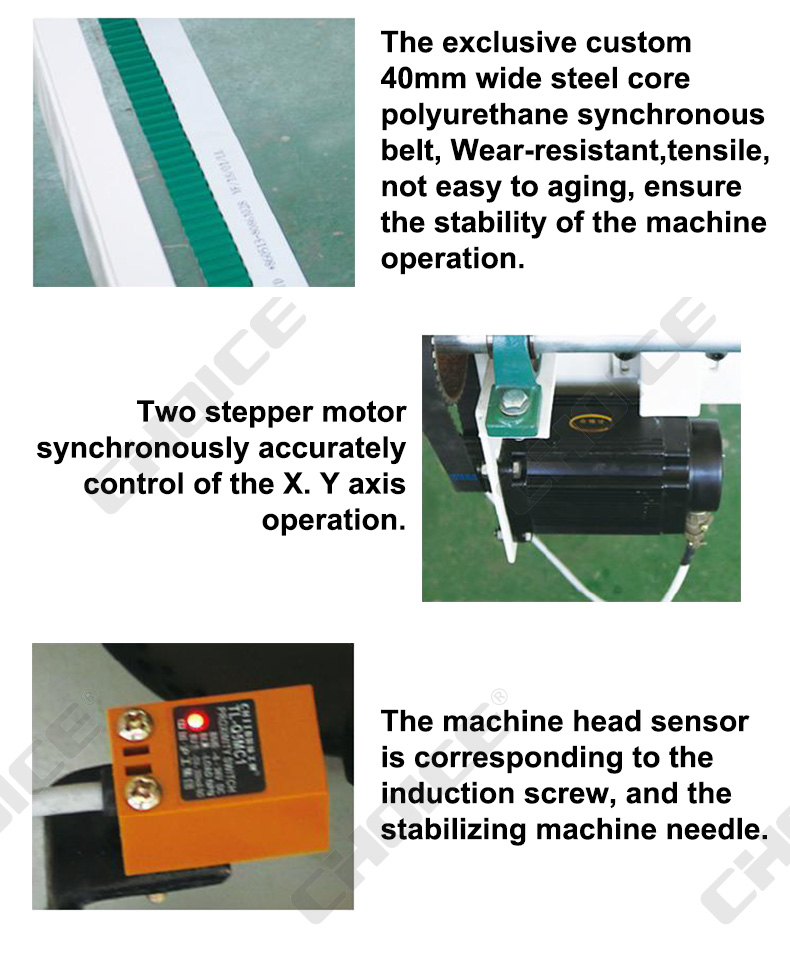

4.Adopt Japan servo motors for controlling ensuring more precision.
5.Low noise, low vibration, stable performance.
6. Quilting pattern storage: about 200 patterns kept in the computer, also can read from USB, the pattern file is .dst.
7.Auto cloth feeding and pulling, automatic cutter according customer choice.
Feature
1.suitable for kinds of waterproof garment and products ,such as waterproof jacket raincoat tent,car cover ect.
2.Panasonic PLC control
3.The up and low roller chain are synchronous,auto compensation and reverse
4.Double pedals control
5.It could work up to 24 hours
6.Blowing-in hot air is filtrated without any water and oil
7.Auto tape clipping feeding and finishing reduce function
8.supper-thin lower column design,suitable for sealing various sizes products
