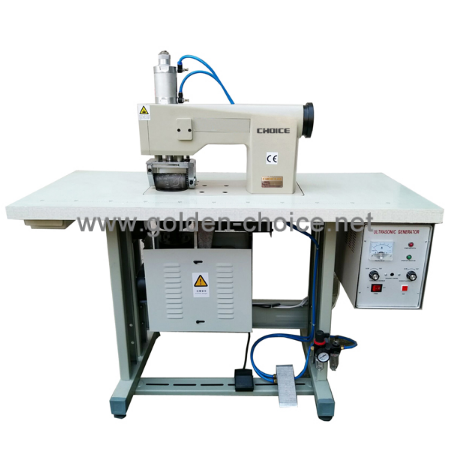

Máquina de coser de encaje ultrasgc-u100

GC-U100
máquina de coser ultrasónica, máquina de coser ultrasónica del cordón, máquina de coser ultrasónica del bolso
Entrega
FOB
pedido mínimo
1 conjunto
Disponibilidad
1000.0conjunto / El
Lugar original de origen
NINGBO
Cantidad
enviar contacto
Añadir al carrito


GC-U100 ultrasonic non-woven bag sewing machine ,there is so many presser optional.

Product Description

Technical Specification

Item

Ultrasonic Lace Sewing Machine

Model

GC-U100

Power Source

220V /110V

Input Power

2500W (3 power adjustable)

Output Frequency

20KHZ

Working Speed

0-18M/minute

Roller Size

50MM-100MM (2 inch to 4 inch)
Diameter:Ø50MM

Dimension of packing

127CM *65CM*130CM

Gross Weight

160KG

Working Temperature

-10℃-28℃

Pressure System

Air type or manual type

Feature:

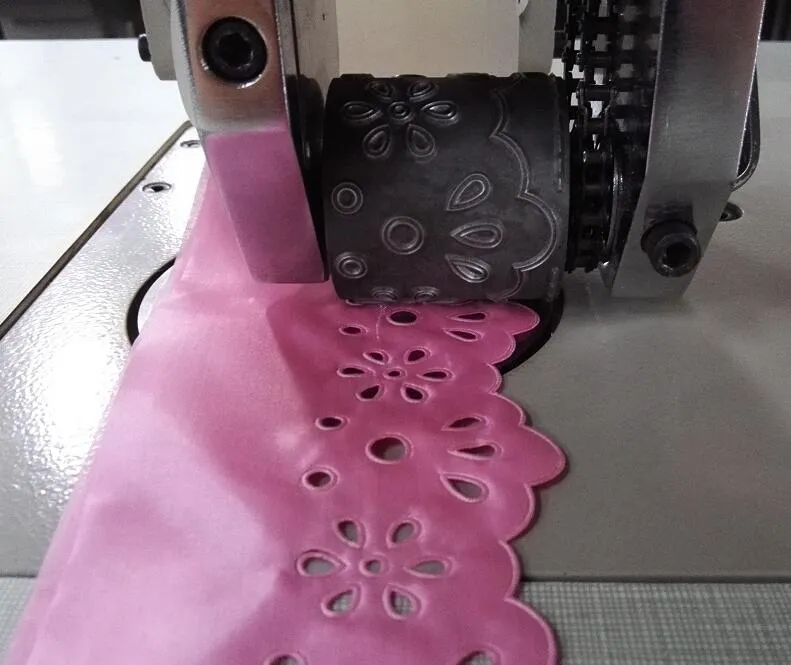

1.Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding
2.Eliminating traditional needle and thread.,reduce material cost and more high speed
3.No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.Continuous working for mass production
5.No smoke, spark and danger during operation
6.Easy operation realizes lowest labor cost;double motors structure
7.Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.

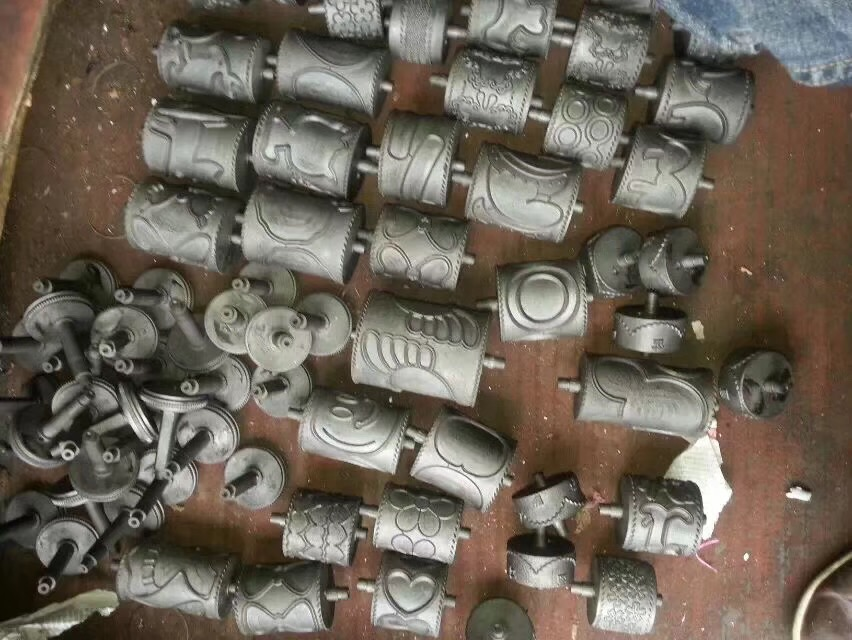

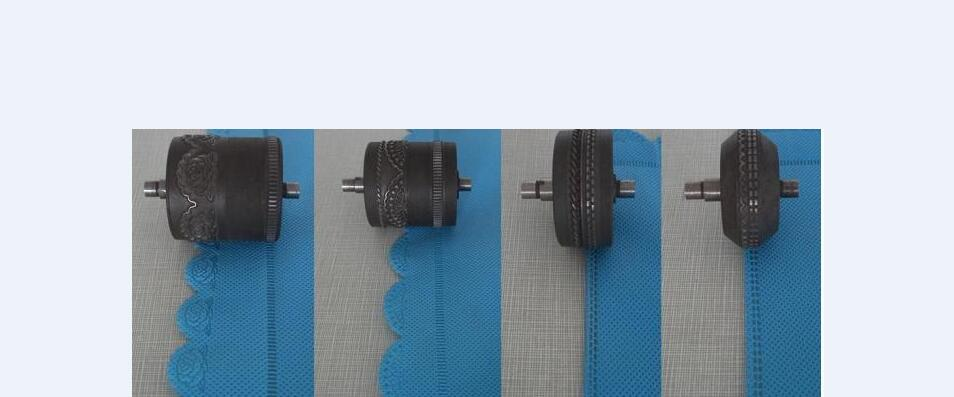

8.Thousands of pattern roller designs available,easily to replace

Suitable material :
Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin, Thermo plastic films.and other synthetic fibre material

Product:
Lace clothing,synthetic filter bag, surgical gown ,hair decorations, packaging satin,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,etc

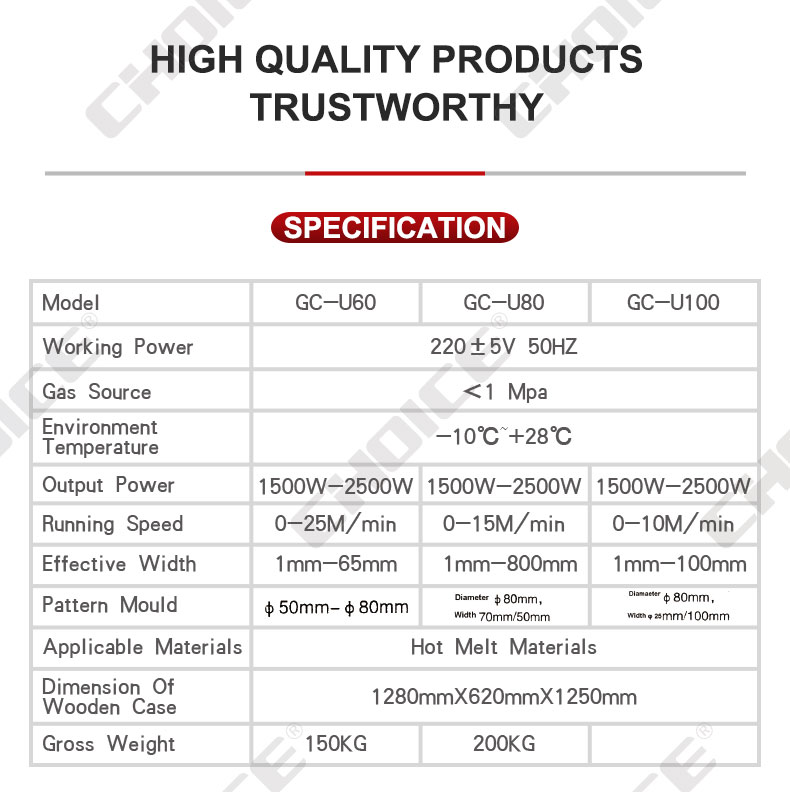

GC-U60_02
