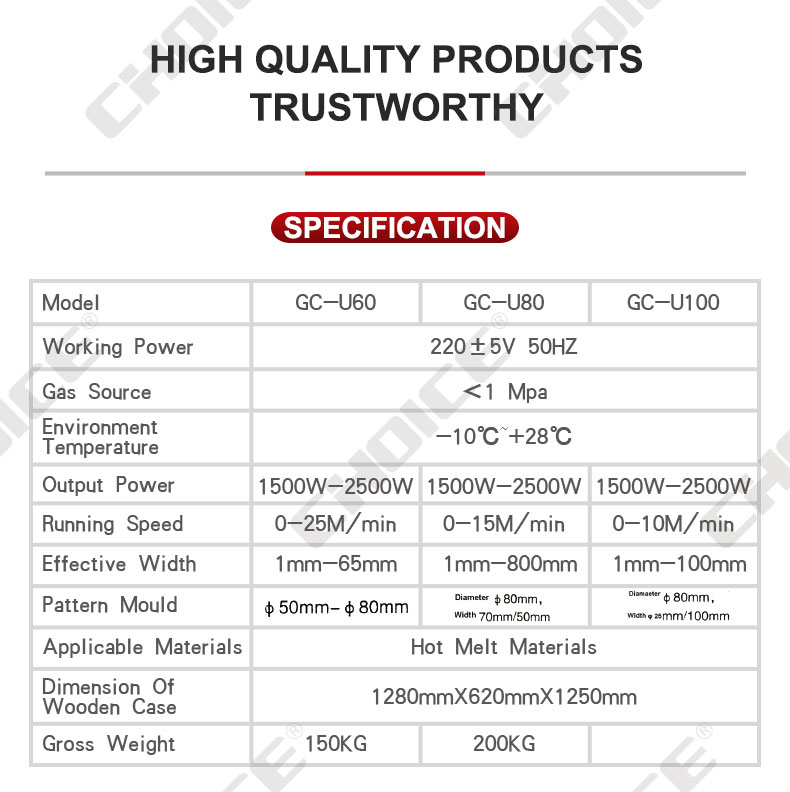

Parameter Item | Ultrasonic Lace Sewing Machine | Model | GC-U60A | Power Source | 220V /110V | Inout Power | 2000W (3 power adjustable) | Output Frequency | 20KHZ | Working Speed | 0-20M/minute | Roller Size | 23MM-60MM Ø50MM
(1 inch and 2 inch standard roller) | Dimension of packing | 125CM *60CM*130CM | Gross Weight | 140KG | Working Temperature | -10℃-28℃ | Pressure System | Air type or manual type |
Feature
1.Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding
2.Eliminating traditional needle and thread.,reduce material cost and more high speed
3.No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.Continuous working for mass production
5.No smoke, spark and danger during operation
6.Easy operation realizes lowest labor cost;double motors structure
7.Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.

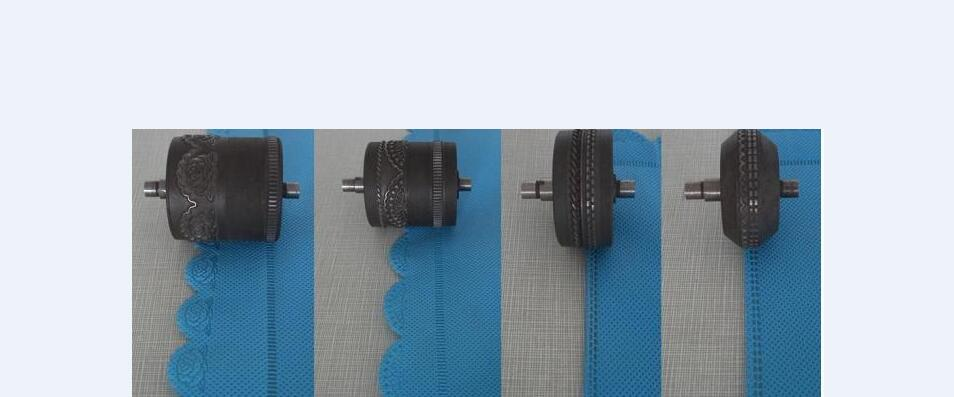

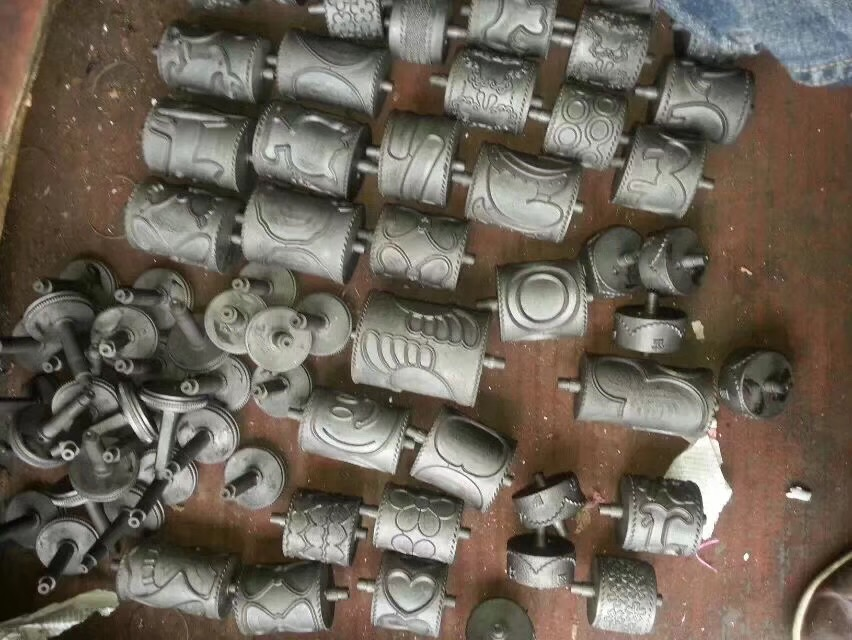

8.Thousands of pattern roller designs available,easily to replace Functions
 Suitable material
Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin,
Thermo plastic films.and other synthetic fibre material Application
Lace clothing,synthetic filter bag, surgical gown , hair decorations,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,pp woven sealing,etc |
