máquina de soldadura ultrasónica automática
máquina de soldadura ultrasónica automática
máquina de soldadura ultrasónica automática
máquina de soldadura ultrasónica automática
máquina de soldadura ultrasónica automática

Máquina de soldadura por puntos ultrasónica de un solo cabezal GC-UQ1

UQ1
Entrega
FOB
pedido mínimo
1 conjunto
Disponibilidad
1000conjunto / El
Lugar original de origen
NINGBO
Cantidad
enviar contacto
Añadir al carrito
  • Condition:New
  • Type:industrial sewing machine
  • Place of Origin:CN;ZHE
  • Stitch Formation:Chain Stitch
  • Mechanical Configuration:Flat-Bed
  • Feed Mechanism:manual
  • After-sales Service Provided:No overseas service provided
  • Brand Name:CHOICE
  • Max. Sewing Speed:0-20m/min
  • Max. Sewing Thickness:Horn size: 15mm diameter
  • Stitch Length:Roller size: 14mm, 63mm
  • Power:2000w
  • Overall Dimensions:630x455x685
  • Certification:CE

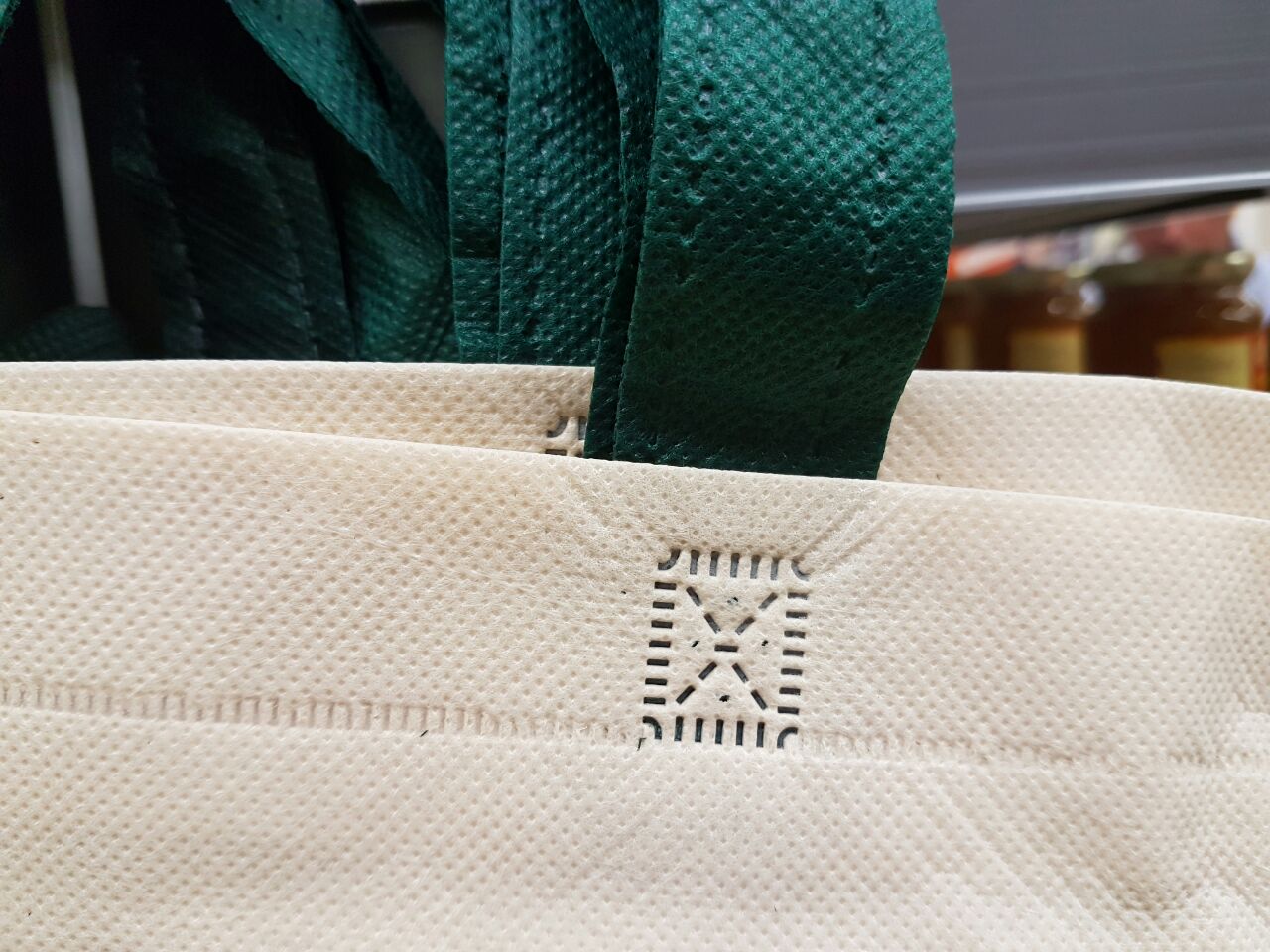

GC-UQ1 spot welt machine.jpg

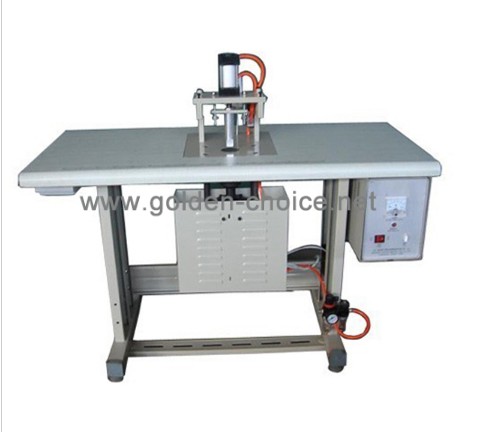

GC-UQ1single head spot welding non-woven bag machine :it is very convenient for you to do the job of non woven bag handle punching

Technical Specification

Item

Ultrasonic Spot Welding Machine( Single Head)

Power Source

220V 50-60HZ

Inout Power

1200W

Output Frequency

20KHZ

Working Speed

2-3 seconds/time(adjustable)

Roller Size

As per customer request

Dimension

125*60*130CM

Gross Weight

100KG

Working Temperature

-10℃-28℃

Product
Non woven bag soft handle welding, artificial leather LOGO embossing,
surgical gown belt,hook and loop welding,etc
